CDMSJ22029-650 SL
CDMSJ22029-650 SL

CDMSJ22029-650 SL

0/Quote

Sold By: Harris Corporation

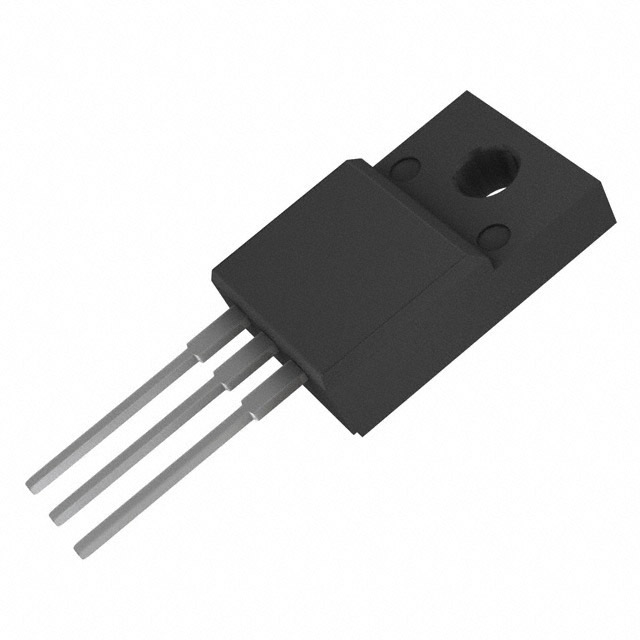

N-Channel 650 V 29A (Tc) 33W (Tc) Through Hole TO-220FP

Standard Quantity
Mounting Type
(2002 products available)
Quantity

SKU: SW-176-A23

Categories: Transistors

Tags: Transistors

  • Package / Case: TO-220-3 Full Pack
  •
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Technology: MOSFET (Metal Oxide)
  • FET Type: N-Channel
  • Current - Continuous Drain (Id) @ 25°C: 29A (Tc)
  • Rds On (Max) @ Id, Vgs: 130mOhm @ 10.8A, 10V
  • Power Dissipation (Max): 33W (Tc)
  • Vgs(th) (Max) @ Id: 4V @ 250µA
  • Supplier Device Package: TO-220FP
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Vgs (Max): 30V
  • Drain to Source Voltage (Vdss): 650 V
  • Gate Charge (Qg) (Max) @ Vgs: 51 nC @ 10 V
  • Input Capacitance (Ciss) (Max) @ Vds: 1920 pF @ 400 V
